TM 3x Attaching Machine Series

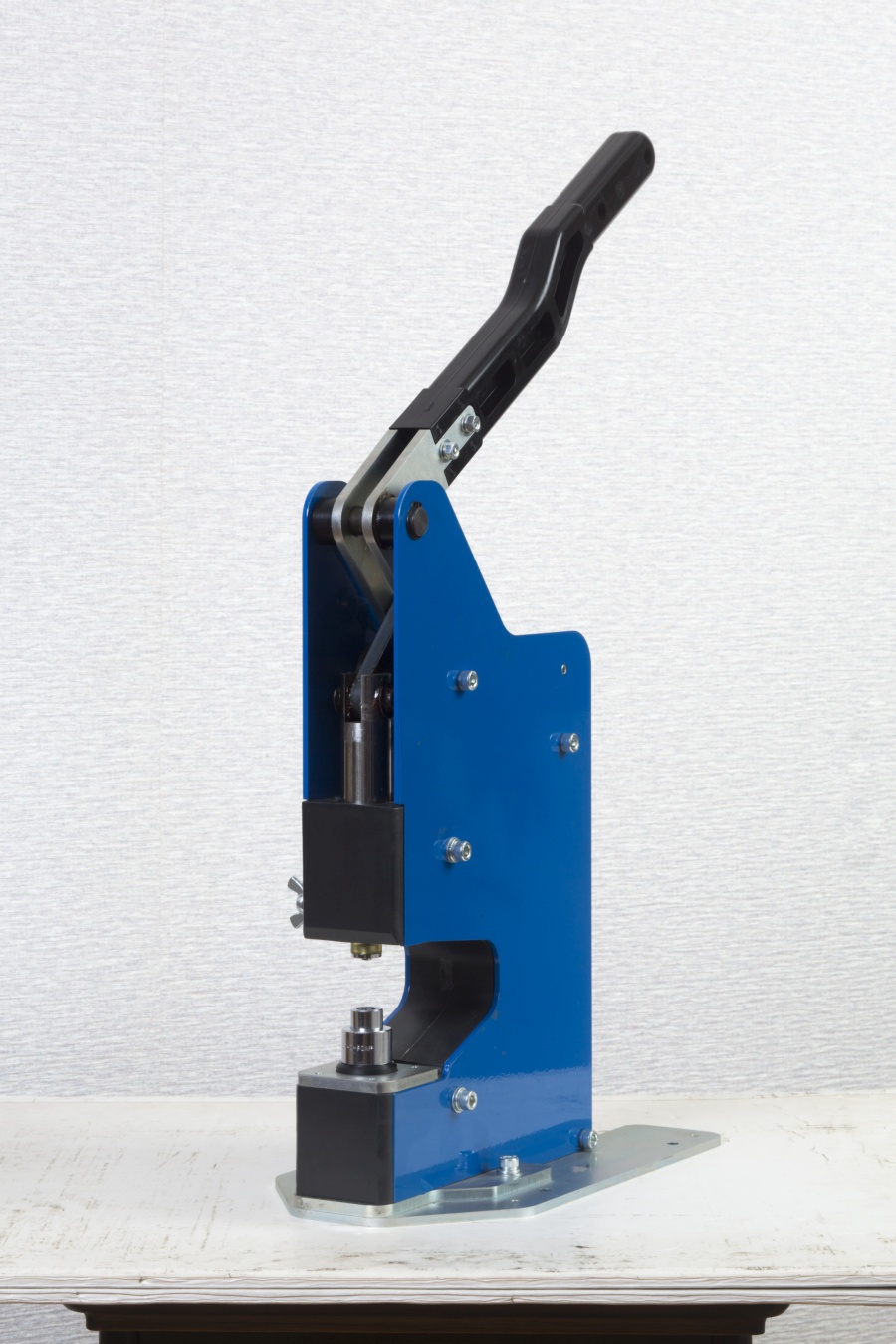

HAND PRESS TM-3NR

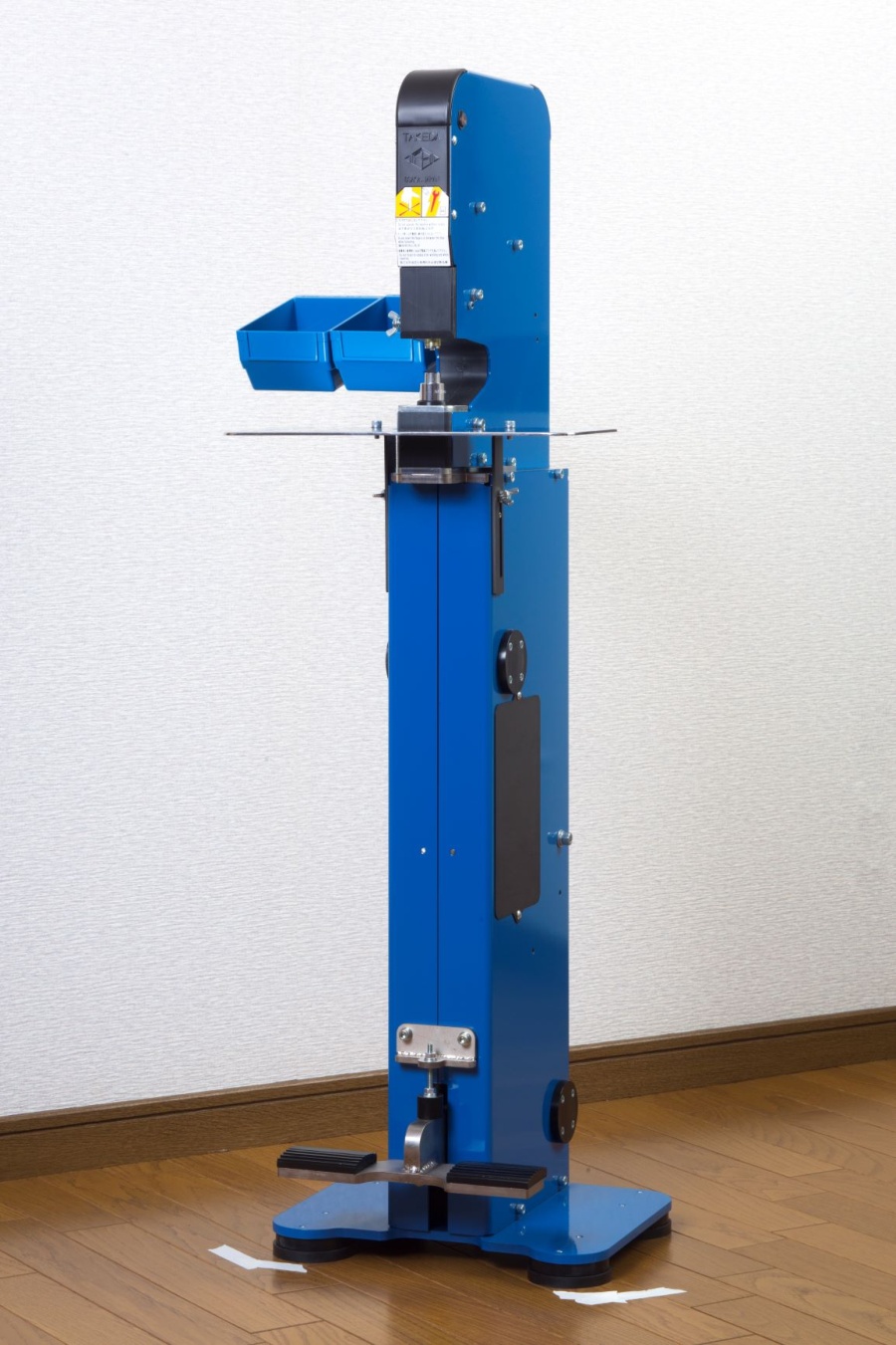

KICK PRESS TM-35NR

※ Compact size
※ Can be placed on table top
※ Light and portable
※ Easy operation
※ Automatic stroke control for ideal attachment.

※  A simple step on the pedal for easy       snap attachment.
※  No electricity required. Can be installed wherever needed.
※  Full stroke mechanism for precise attachment and accident prevention.

Height: 550mm

Height: 1140mm

Width: 150mm

Width: 420mm

Depth: 300mm

Depth: 370mm (including working plane)

Work Depth: 80mm

Work Depth: 80mm

Stroke Height: 32.5mm

Stroke Height: 32.5mm

Weight: 5kg

Weight: 35kg

Accessories : M5 Hex Wrench,

M5 Spanner, Shim Rings (t0.3 t0.5)

Accessories : M6 Hex Wrench, Parts Box (2x), Tray Bracket, M6 Bolts (2), Washer (2), Shim Rings (t0.3 t0.5)
